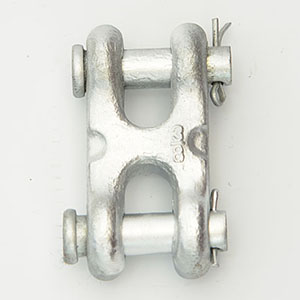

s249 TWIN CLEVIS LINK

End fittings are Quenched and Tempered or Normalized, bodies heat treated by normalizing.

Material is carbon steel  C1045/#45.

Hot Dip galvanized or Electro galvanized.

Lock Nuts are available for all sizes.

Recommended for straight or in-line pull application.

FOS: 5:1

S-247 DOUBLE CLEVIS LINK

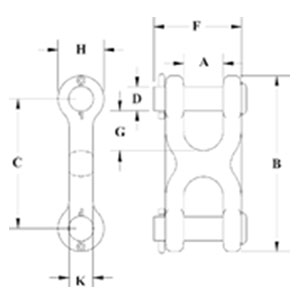

CHAIN SIZE(IN)WORKING LOAD LIMIT (LBS)DIMENSIONS(IN)WEIGHT (LBS)
ABCDEFR
1/42,6000.500.750.500.310.380.751.500.44
5/16-3/85,4000.561.000.630.440.471.001.810.81
7/167,0000.691.130.690.560.591.092.191.28
1/29,2000.811.250.750.630.661.252.471.68
5/817,5000.781.631.000.750.831.513.032.91
