Round Shaft Helical Piles

In applications where compression is the primary consideration we recommend using round shaft piers. In Compression our round shaft  has several advantages over the typical square shaft

Round Shaft Advantages

  • Superior Lateral Stability

  • Greater Section Modulus Strength to resist Twisting and Deflection

  • Patented Cross- Bolt Connection

  • Greater Load Capacities

  • Easy to Install

  • Installs in Any Season

  • Minimal Soil Disturbance

  • Not Effected by High Water table

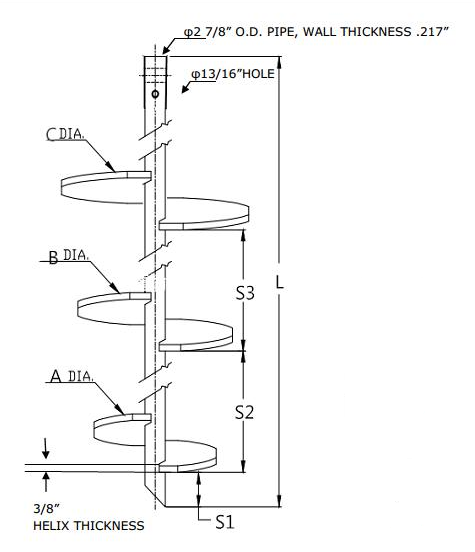

Composition:

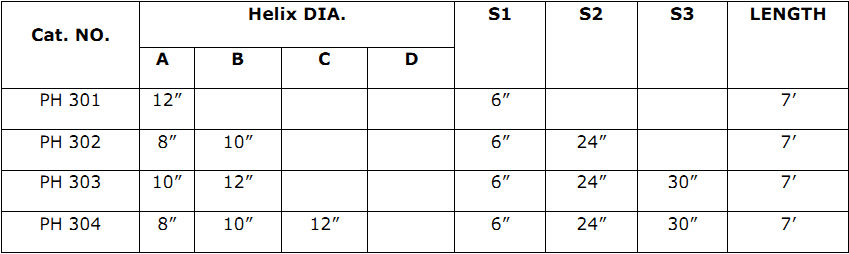

  • A round hollow shaft 2 7/8” thru 12 ¾” O.D. typical.

  • Circular tapered plates (helices) are welded to the center of the shaft.

  • Helix diameters can range between 6” – 48” with a thickness of 3/8” – 1”.

  • Helix pitch will range from 3” – 6”.

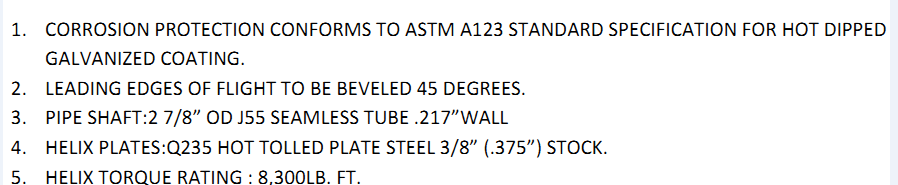

  • Galvanized or bare steel options available
