SQUARE SOLID SHAFT HELICAL PILES
Square Shaft Helical Piles
In applications where tension is the primary consideration we recommend the Square Shaft Piers. They have several advantages over the typical square shaft anchors.
Square Shaft Advantages:
Greater Yield and Tensile Strength
Patented Cross- Bolt Connection
Increased Safety Factor
Higher Torque Capacity
Easy to Install
Installs in Any Season
Minimal Soil Disturbance
Not Effected by High Water Table

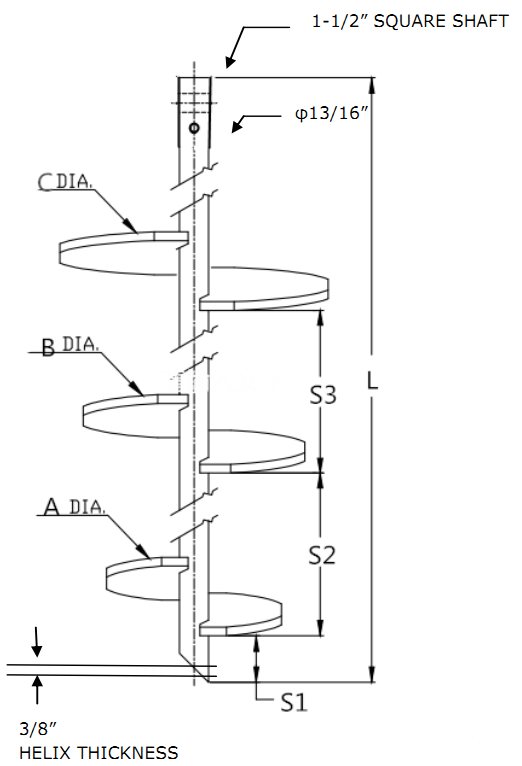

A square solid shaft 1 ¼” thru 2” O.D typical.
Circular tapered plates (helices) are welded to the center of the shaft.

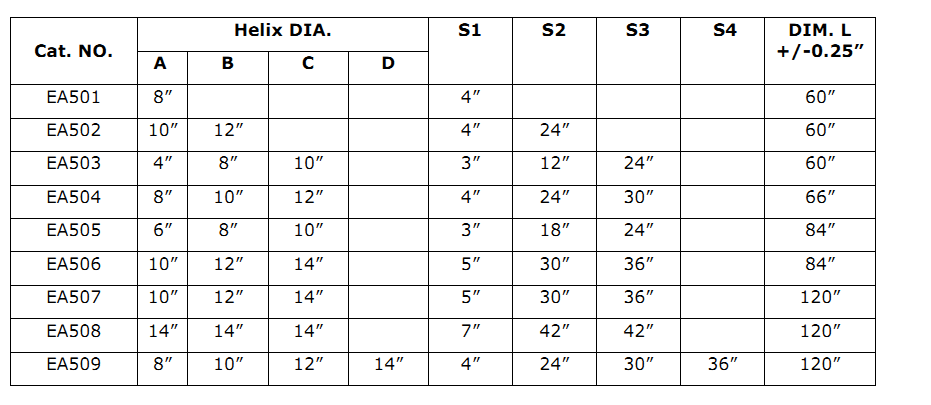

Helix diameters can range between 6” – 48” with a thickness of 3/8” – 1”.
Helix pitch will range from 3” – 6”

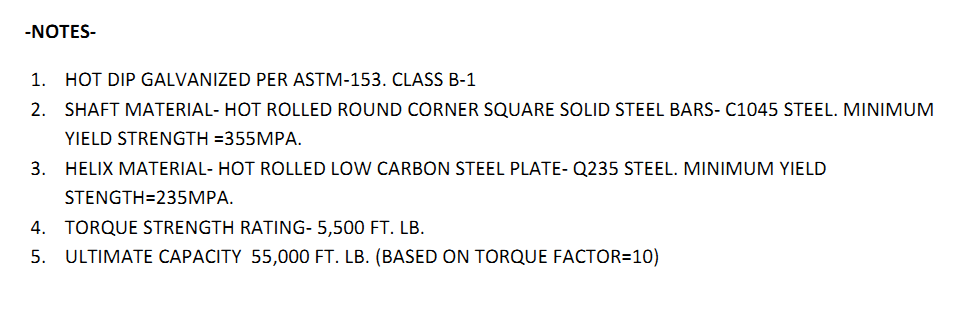

Galvanized or bare steel options available
